12.1 Expression syntax

An expression applies relational operators to simple expressions. Simple expressions are a series of terms (what a term is, is explained below), joined by adding operators.

_________________________________________________________________________________________________________

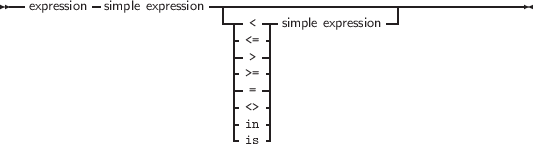

Expressions

--        -              -|--------------------------------------
  expression  simple expression  |-- <-- simple expression-|
                            -<= |
                            - >-|
                            |>= |
                            | =-|
                            |<> |
                            |in |
                            -is -

--simple expression-|-term ------------------------------------------
                 -|-+ ----
                  |-- --|
                  |-or--|
                  -xor -
___________________________________________________________________

The following are valid expressions:

GraphResult<>grError
(DoItToday=Yes) and (DoItTomorrow=No);
Day in Weekend

And here are some simple expressions:

A + B
-Pi
ToBe or NotToBe

Terms consist of factors, connected by multiplication operators.

_________________________________________________________________________________________________________

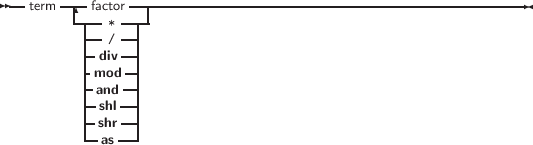

Terms

--term ----factor-------------------------------------------------
        -|--* ---|
         |--/ --|
         |-div --|
         |mod --|
         |-and --|
         --shl--|
         --shr--|
           as
___________________________________________________________________

Here are some valid terms:

2 * Pi
A Div B
(DoItToday=Yes) and (DoItTomorrow=No);

Factors are all other constructions:

_________________________________________________________________________________________________________

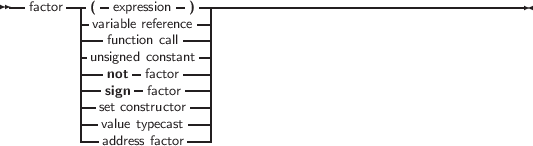

Factors

--factor---(- expression -) ----------------------------------------
         |variable reference-|
         |--function call--|
         |unsigned constant -|
         |--not- factor ---|
         |--sign- factor---|
         --set constructor---|
         --value typecast---|
           address factor

--unsigned constant-|unsigned number-------------------------------
                  --character string--|
                  -constant identifier--|
                        Nil
___________________________________________________________________
